Inconel 625 and Monel 400 are two of the most widely specified nickel-based alloys in the world, yet they were designed for fundamentally different purposes. Inconel 625 is a nickel-chromium-molybdenum-niobium alloy designed for high strength, high-temperature capability, and broad corrosion resistance. Monel 400 is a nickel-copper alloy for outstanding seawater resistance, hydrofluoric acid service, and cost-effective performance in moderate-temperature corrosive environments.
The confusion between these two alloys is understandable — both are nickel-based, both resist chloride stress corrosion cracking, and both appear on the “upgrade from stainless steel” shortlist. But the performance gap is enormous: Inconel 625 has roughly double the yield strength, nearly triple the temperature capability, and dramatically superior pitting resistance. Monel 400 has better hydrofluoric acid resistance, better thermal conductivity, and costs 40–60% less.
This article provides a complete comparison of Inconel 625 vs Monel 400, including chemical composition, mechanical properties, corrosion resistance, temperature capability, applications, and material selection guidance.
Property | Inconel 625 | Monel 400 |
|---|---|---|
Alloy Type | Nickel-Chromium-Molybdenum Alloy | Nickel-Copper Alloy |
UNS Number | N06625 | N04400 |
Main Alloying Elements | Nickel, Chromium, Molybdenum, Niobium | Nickel, Copper |
Corrosion Resistance | Excellent | Excellent |
High Temperature Performance | Superior | Moderate |
Tensile Strength | Higher | Lower |
Yield Strength | Higher | Lower |
Seawater Resistance | Excellent | Excellent |
Acid Resistance | Excellent | Good to Excellent |
Weldability | Excellent | Excellent |
Typical Applications | Aerospace, offshore, chemical processing | Marine, valves, pumps, chemical equipment |
Inconel 625 is a precipitation-strengthened nickel-based superalloy primarily composed of nickel, chromium, molybdenum, and niobium.
The addition of molybdenum and niobium provides exceptional resistance against pitting, crevice corrosion, and stress corrosion cracking. Unlike many stainless steels and conventional nickel alloys, Inconel 625 maintains excellent mechanical strength without requiring additional heat treatment.
Typical characteristics of Inconel 625 include:
Excellent corrosion resistance in chloride environments
High tensile and fatigue strength
Superior oxidation resistance
Outstanding weldability
Stable performance at high temperatures
Because of these properties, Inconel 625 is widely used in:
Offshore oil and gas systems
Chemical processing equipment
Heat exchangers
Aerospace engine components
Marine engineering
Nuclear power systems
For a detailed overview of composition, properties, and applications, see our Ultimate Guide to Inconel 625.
Monel 400 is a nickel-copper alloy containing approximately 67% nickel and 23% copper, with small amounts of iron and manganese.
It was developed for environments where resistance to seawater and chemical corrosion is essential.
The major advantages of Monel 400 include:
Excellent seawater corrosion resistance
Strong resistance to hydrofluoric acid
Good mechanical properties at subzero temperatures
Easy fabrication and welding
Common applications of Monel 400 include:
Marine equipment
Pump shafts
Valves
Heat exchangers
Chemical processing equipment
Offshore components
Unlike Inconel 625, Monel 400 is not designed primarily for extreme temperature applications.
Chemical composition is one of the biggest differences between these two nickel alloys.
Element | Inconel 625 | Monel 400 |
|---|---|---|
Nickel (Ni) | Balance | 63–70% |
Chromium (Cr) | 20–23% | None |
Molybdenum (Mo) | 8–10% | None |
Niobium (Nb) | 3–4% | None |
Copper (Cu) | Minor | 28–34% |
Iron (Fe) | Minor | ≤2.5% |
The high chromium and molybdenum content gives Inconel 625 significantly improved resistance to:
Chloride-induced pitting
Crevice corrosion
Oxidizing environments
High-temperature chemical attack
Monel 400 relies mainly on its high nickel and copper content for corrosion resistance, making it particularly effective in reducing environments and marine applications.

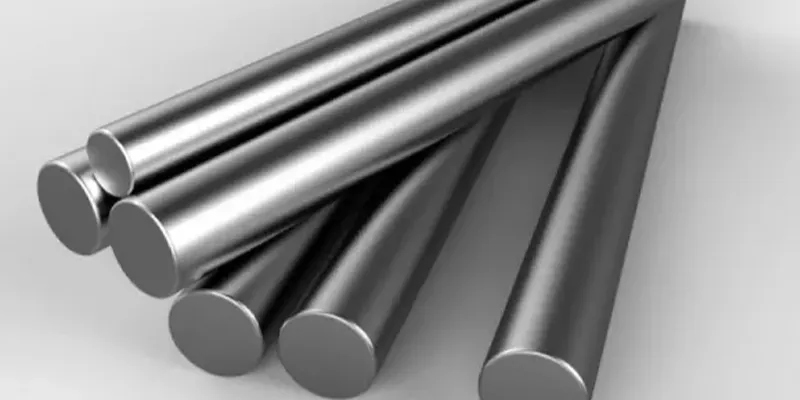

Mechanical strength is another major difference between Inconel 625 and Monel 400.
Mechanical Property | Inconel 625 | Monel 400 |
|---|---|---|
Tensile Strength | ~830 MPa | ~480 MPa |
Yield Strength | ~460 MPa | ~170 MPa |
Elongation | ~30% | ~35% |
Inconel 625 provides significantly higher tensile and yield strength.
This makes it more suitable for:
High-pressure piping
Offshore platforms
Aerospace structures
Critical pressure equipment
Monel 400 offers excellent ductility and toughness but is generally selected for corrosion resistance rather than high mechanical loading.
Inconel 625 is vastly superior for high-temperature service.
It can operate continuously up to 980°C for oxidation-limited service and 815°C for structural/creep-limited applications. Monel 400 is limited to approximately 480°C in oxidizing air, above which it oxidizes rapidly due to the absence of chromium. For any application above 500°C, Inconel 625 is effectively mandatory.
High-Temperature Parameter | Monel 400 | Inconel 625 |
Max service temp (oxidizing air) | ~480°C (900°F) | ~980°C (1,800°F) |
Max service temp (structural/creep) | ~400°C | ~815°C (1,500°F) |
Oxidation resistance at 600°C | Poor (no Cr protection) | Excellent |
Creep resistance at 650°C | Not suitable | Good |
Thermal fatigue resistance | Moderate | Excellent |
Monel 400's absence of chromium means it cannot form the protective Cr₂O₃ oxide scale that protects high-temperature alloys. Above 480°C in air, it oxidizes rapidly and loses structural integrity. For furnace components, turbine parts, exhaust systems, or any service above 500°C, Inconel 625 is the only choice between the two.

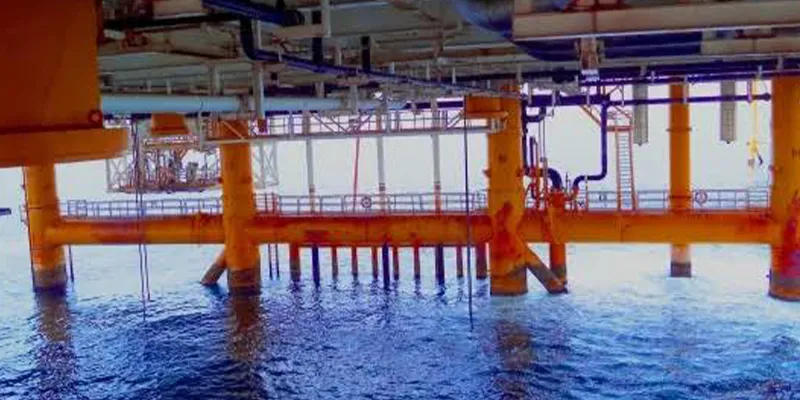

Both alloys are excellent in seawater, but for different reasons. In flowing ambient-temperature seawater, both perform equally well with corrosion rates below 0.025 mm/year.
Monel 400 is the more economical choice for static seawater structures, fasteners, and heat exchanger tubing where loads are modest. Inconel 625 is the better choice for high-velocity seawater, crevice-prone geometries, warm stagnant seawater, and any seawater component that must also carry high mechanical load.
Seawater Condition | Monel 400 | Inconel 625 | Recommended Choice |
Flowing seawater (0.5–3 m/s, ambient) | Outstanding | Excellent | Either (400 cheaper) |
Stagnant seawater (ambient) | Good | Excellent | 625 (if crevice risk) |
Stagnant seawater (warm, >27°C) | Moderate (biofouling MIC risk) | Excellent | 625 |
High velocity (>10 m/s) | Moderate (erosion-corrosion) | Excellent | 625 |
Crevice (gaskets, tube-to-tubesheet) | Moderate | Excellent (Mo) | 625 |
Splash zone / tidal zone | Good | Excellent | Either (625 stronger) |
Deep seawater (cold, high pressure) | Excellent | Excellent | Either |
Component carries high mechanical load | Insufficient strength | Excellent | 625 |
Monel 400 is dramatically better in hydrofluoric acid (HF) and caustic/alkaline solutions due to its copper content. Inconel 625 is dramatically better in oxidizing acids, chloride-containing acids, and reducing acids like HCl, due to its molybdenum and chromium content. For sulfuric acid at moderate concentrations, both perform comparably. For nitric acid, only Inconel 625 is suitable.
Acid Environment | Monel 400 | Inconel 625 | Winner |
Hydrofluoric acid (HF) | Excellent | Poor (Cr attacked) | 400 |
Caustic soda (NaOH) | Excellent | Good | 400 |
Hydrochloric acid (dilute) | Good | Better (Mo) | 625 |
Sulfuric acid (dilute–moderate) | Good | Good | Tie |
Nitric acid (oxidizing) | Poor (no Cr) | Excellent | 625 |
Phosphoric acid | Good | Good | Tie |
Organic acids (acetic, formic) | Excellent | Excellent | Tie |
Mixed acids (HNO₃ + HCl) | Poor | Better | 625 |
Acid Environment | Monel 400 | Inconel 625 | Winner |
Hydrofluoric acid (HF) | Excellent | Poor (Cr attacked) | 400 |
Caustic soda (NaOH) | Excellent | Good | 400 |
Hydrochloric acid (dilute) | Good | Better (Mo) | 625 |
Sulfuric acid (dilute–moderate) | Good | Good | Tie |
Nitric acid (oxidizing) | Poor (no Cr) | Excellent | 625 |
Phosphoric acid | Good | Good | Tie |
Organic acids (acetic, formic) | Excellent | Excellent | Tie |
Mixed acids (HNO₃ + HCl) | Poor | Better | 625 |
Hydrofluoric Acid: The Decisive Monel 400 Advantage
Hydrofluoric acid is one of the most dangerous industrial acids. It attacks chromium-bearing alloys by forming soluble chromium fluoride, destroying the passive film. Monel 400, with no chromium, is immune to this mechanism and is the standard material for HF production equipment, alkylation units, and uranium processing. Inconel 625 should NEVER be used in HF service.
Both alloys have excellent weldability.
Monel 400 is easier to machine and form due to its simpler composition and lower strength. Inconel 625 is more difficult to machine because of its high strength and rapid work hardening, but offers superior weldability for dissimilar metal joints. Neither requires post-weld heat treatment in most applications.
Fabrication Parameter | Monel 400 | Inconel 625 |
Recommended filler metal | ERNiCu-7 (Monel 60) | ERNiCrMo-3 (Alloy 625 filler) |
Weldability | Excellent (all processes) | Excellent (all processes) |
Machinability | Moderate (easier than 625) | Difficult (high work hardening) |
Formability | Very good (ductile, lower strength) | Good (requires heavier equipment) |
Post-weld heat treatment | Generally not required | Generally not required |
Dissimilar welding | Good | Excellent (most common filler worldwide) |

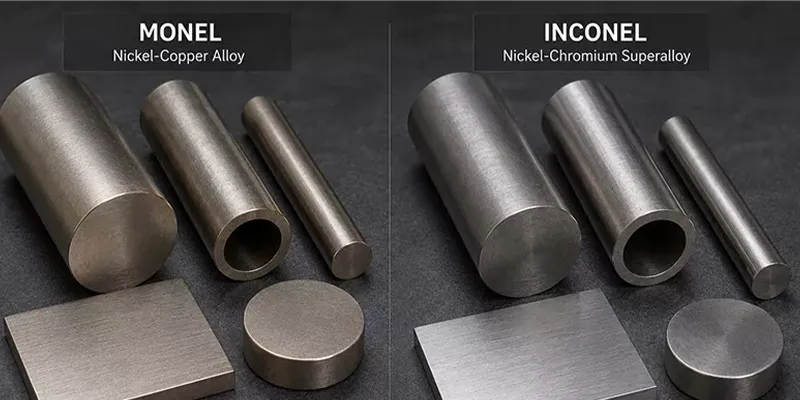

Monel 400 is significantly less expensive than Inconel 625 — typically 40–60% cheaper.
The price difference is driven by 625's higher nickel content, chromium, molybdenum, and niobium additions. Monel 400's simple nickel-copper composition uses less nickel and no expensive alloying elements. On large projects with moderate requirements, specifying 400 instead of 625 can save hundreds of thousands of dollars.
Product Form | Monel 400 ($/kg) | Inconel 625 ($/kg) | 625 Premium |
Sheet, 2mm | 18–24 | 32–38 | ~50% higher |
Bar, 50mm | 16–22 | 28–34 | ~55% higher |
Pipe, 2" SCH40 | 24–32 | 42–50 | ~45% higher |
Plate, 10mm | 18–24 | 30–36 | ~50% higher |
Flange, 4" Class 150 | 45–65 | 85–110 | ~55% higher |
Note: Prices fluctuate with nickel, copper, molybdenum, and chromium commodity markets. The 40–60% premium for 625 is relatively stable. The cost decision should always follow the technical decision — never substitute Monel 400 for Inconel 625 to save money if the service environment requires 625's strength, temperature capability, or pitting resistance.
Is Inconel 625 stronger than Monel 400?
Yes, significantly. Inconel 625 has 50–70% higher tensile strength (827–1,034 MPa vs 485–620 MPa) and roughly double the yield strength (414–655 MPa vs 195–275 MPa) compared to Monel 400. This comes from niobium solid-solution strengthening in 625, which Monel 400 does not have. For any load-bearing or pressure-retaining application, 625 is the correct choice.
Which alloy is better for seawater service?
Both are excellent in flowing ambient-temperature seawater with corrosion rates below 0.025 mm/year. For static structures with moderate loads, Monel 400 is the more economical choice. For high-velocity seawater, warm stagnant seawater, crevice-prone geometries, or any seawater component carrying high mechanical load, Inconel 625 is superior due to its molybdenum content and higher strength.
Which alloy is better for hydrofluoric acid (HF)?
Monel 400 is dramatically superior. Hydrofluoric acid attacks chromium-bearing alloys by forming soluble chromium fluoride. Monel 400 has no chromium and is immune to this mechanism. Inconel 625, with 20–23% chromium, should never be used in HF service. For HF alkylation units, acid production, and uranium processing, Monel 400 is the standard material.
Can Monel 400 be used at high temperatures?
No. Monel 400 is limited to approximately 480°C (900°F) in oxidizing air. Above this temperature, it oxidizes rapidly because it has no chromium to form a protective oxide scale. For service above 500°C, Inconel 625 (rated to 980°C) is the correct choice. In reducing or non-oxidizing atmospheres, 400 can go somewhat higher, but it is still not a high-temperature alloy.
Are both alloys non-magnetic?
Yes, both are fully austenitic and non-magnetic in the annealed condition. Inconel 625 has a relative permeability of approximately 1.001; Monel 400 is similarly non-magnetic. Neither will attract a permanent magnet at room temperature. This makes both suitable for instrument housings, electronic equipment, and MRI-adjacent applications.
What filler metals should I use for welding each alloy?
Use ERNiCrMo-3 (Alloy 625 filler, AWS A5.14) for welding Inconel 625. Use ERNiCu-7 (Monel 60 filler, AWS A5.14) for welding Monel 400. Both alloys can be welded without post-weld heat treatment in most applications. For dissimilar joints between the two, ERNiCrMo-3 is generally preferred as it provides the corrosion resistance of the more demanding environment.
Which alloy is more cost-effective?
Monel 400 is typically 40–60% cheaper than Inconel 625. Its simple nickel-copper composition uses less nickel and no expensive alloying elements (Cr, Mo, Nb). For moderate-temperature marine and chemical applications where extreme strength or pitting resistance is not required, Monel 400 is the more cost-effective choice. For high-strength, high-temperature, or severe chloride service, the premium for 625 is justified.
What is the PREN of each alloy?
Inconel 625 has a PREN of approximately 51 (21.5% Cr + 3.3 × 9% Mo). Monel 400 has effectively no PREN because it contains no chromium or molybdenum. This means 625 provides dramatically superior resistance to chloride pitting and crevice corrosion. However, in ambient-temperature flowing seawater, both alloys perform well despite the PREN difference.
Can Monel 400 replace Inconel 625?
Only in low-temperature, moderate-load applications focused on seawater, hydrofluoric acid, or caustic service. Monel 400 cannot replace 625 in any high-temperature application (above 480°C), high-strength application (yield strength is half of 625's), chloride pitting service, or oxidizing acid environment. Always verify the specific service conditions against each alloy's performance envelope.
Which alloy has better thermal conductivity?
Monel 400 has significantly better thermal conductivity: 21.8 W/m·K vs Inconel 625's 9.8 W/m·K — roughly 2.2× better. For heat exchanger tubing where thermal transfer efficiency matters, Monel 400 can provide better heat transfer performance per unit area. This can be a deciding factor in marine heat exchanger design when loads are moderate.
