Inconel 625 pipes operate in some of the most demanding environments on Earth: subsea oil and gas flowlines at 300 bar, chemical process lines carrying hot sulfuric acid, aerospace exhaust ducts at 900°C, and nuclear reactor coolant loops. In each case, a specification error—wrong schedule, wrong grade, missing NACE certification—can mean premature failure, costly shutdowns, or safety incidents.
The challenge is that Inconel 625 pipe is not a single product. It comes in two manufacturing types (seamless and welded), two metallurgical grades (Grade 1 and Grade 2), multiple standards (ASTM B444, B705, B704), and dozens of sizes and schedules. This guide breaks the selection process into nine sequential steps that take you from service definition to purchase order, ensuring nothing is missed.
Quick Reference: Inconel 625 Pipe Standards
ASTM B444 = Seamless pipe · ASTM B705 = Welded pipe · ASTM B704 = Welded tube · ASME B36.19M = Dimensional standard · ASME B31.3 = Pressure design · NACE MR0175 = Sour service qualification
Every pipe selection begins with a precise definition of the service environment. Without this, every subsequent decision is a guess. Document the following parameters before anything else:
Parameter | What to Specify | Why It Matters |
|---|---|---|
Design Temperature | Minimum, maximum, and operating temperature range (°C or °F) | Determines allowable stress per ASME II-D; affects grade selection (Grade 2 limited to <650°C) |
Design Pressure | Internal and external pressure (bar or psi) | Drives wall thickness calculation per ASME B31.3 |
Corrosive Media | Chemical composition, concentration, pH, chloride content, H₂S presence | Confirms Inconel 625 is the correct alloy; determines if NACE MR0175 applies |
Flow Conditions | Velocity, flow regime (steady/cyclic), erosion potential | High-velocity or erosive service may require thicker walls or seamless construction |
Code Requirements | ASME B31.3, B31.4, B31.8, API 5L, or other applicable code | Determines design formulas, testing, and documentation requirements |
Cyclic Loading | Pressure cycling, thermal cycling, vibration | Cyclic service requires seamless pipe; welded pipe is vulnerable at the seam under fatigue |
⚠ Critical: H₂S Content
If your service environment contains hydrogen sulfide (H₂S) at any concentration, you must specify NACE MR0175/ISO 15156 compliance. This is non-negotiable for oil and gas applications. See Step 7 for details.
The first material decision is whether to use seamless pipe (ASTM B444) or welded pipe (ASTM B705). This choice affects cost, availability, pressure rating, and fatigue performance.
Factor | Seamless (ASTM B444) | Welded (ASTM B705) |
|---|---|---|
Manufacturing | Extruded from solid billet; no longitudinal seam | Formed from plate and longitudinally welded (TIG/SAW) |
Pressure Rating | Higher (joint factor E = 1.0) | Lower (joint factor E = 0.85–1.0 depending on inspection level) |
Cyclic / Fatigue Service | Excellent | Acceptable for mild cycling; not recommended for severe fatigue |
ASME Section VIII Pressure Vessel | Required | Not permitted for pressure boundary |
Size Range | 1/4" NB to 8" NB typical | Up to 24" NB and larger |
Cost | 15–30% higher | Lower |
Best Application | High pressure, cyclic, critical service, subsea, sour gas | Medium pressure, non-cyclic, large diameter, cost-sensitive |
Decision Rule
Choose seamless (B444) when: design pressure exceeds 100 bar, service is cyclic or fatigue-critical, ASME Section VIII applies, or the pipe is for subsea/sour gas service.
Choose welded (B705) when: diameter exceeds 8", pressure is moderate (<100 bar), service is steady-state, and cost optimization is important.
When in doubt, choose seamless. The cost premium is small compared to the risk of weld-seam failure in demanding service.
Inconel 625 pipe is supplied in two metallurgical conditions, each with distinct properties and service limitations:
Property | Grade 1 (Solution Annealed) | Grade 2 (Annealed + Aged) |
|---|---|---|
Heat Treatment | 1095–1205°C, rapid cool | Solution anneal + age at ~730°C for 8–10 hr |
Yield Strength (min) | 414 MPa (60 ksi) | ~620–760 MPa (90–110 ksi) |
Tensile Strength (min) | 827 MPa (120 ksi) | ~827–965 MPa |
Strengthening Mechanism | Solid-solution (Nb, Mo in Ni matrix) | γ″ (Ni₃Nb) precipitation hardening |
Max Service Temperature | ~980°C (1800°F) | ~650°C (1200°F) — γ″ over-ages above this |
Corrosion Resistance | Full (optimal passive film) | Slightly reduced (carbide precipitation during aging) |
Recommended For | Most piping applications | High-strength, low-temperature applications (fasteners, shafts) |
Recommendation
For the vast majority of piping applications, Grade 1 (solution annealed) is the correct choice. It offers the best combination of corrosion resistance, ductility, and weldability. Choose Grade 2 only when higher yield strength is specifically required and service temperature remains below 650°C. For a deeper comparison of properties, see the complete Inconel 625 mechanical properties reference.

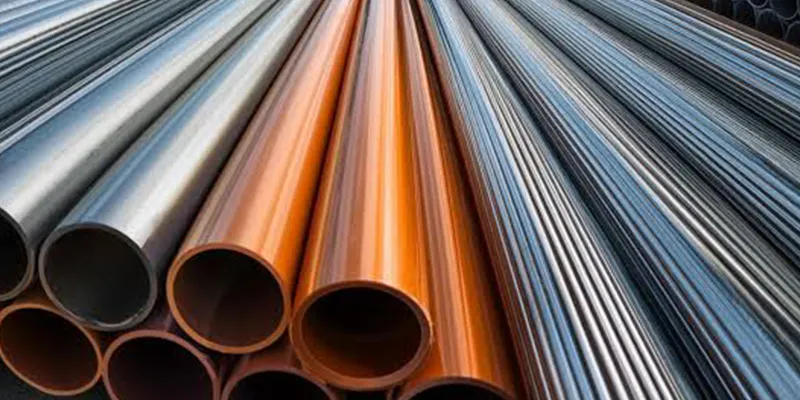

Inconel 625 pipe dimensions follow ASME B36.19M for stainless and nickel alloy pipe. You need to specify three parameters: Nominal Pipe Size (NPS), outside diameter (OD), and schedule (wall thickness).
Common Inconel 625 Pipe Sizes and Schedules
NPS | OD (mm) | SCH 5S (mm) | SCH 10S (mm) | SCH 40S (mm) | SCH 80S (mm) | SCH 160 (mm) |
|---|---|---|---|---|---|---|
1/2" | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | 4.78 |
1" | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | 6.35 |
2" | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | 8.74 |
4" | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | 13.49 |
6" | 168.3 | 2.77 | 3.40 | 7.11 | 10.97 | 18.26 |
8" | 219.1 | 2.77 | 3.76 | 8.18 | 12.70 | 23.01 |
Schedule Selection Guidelines
SCH 5S / 10S: Thin-wall, low-pressure applications (instrument tubing, chemical injection lines). Lightweight and economical.
SCH 40S: The workhorse schedule for general industrial piping. Suitable for most process lines up to moderate pressure.
SCH 80S: High-pressure service. Common for subsea flowlines, hydraulic lines, and high-pressure chemical processes.
SCH 160: Very high pressure. Used for extreme-pressure applications such as downhole tubing and high-pressure reactor piping.
Once you have a preliminary schedule, verify that the wall thickness is sufficient for your design pressure and temperature using the ASME B31.3 straight pipe formula:
t = P × D / (2 × S × E + 0.8 × P)
where t = required wall thickness (mm) · P = design pressure (MPa) · D = outside diameter (mm) · S = allowable stress (MPa, from ASME Section II-D) · E = joint factor (1.0 for seamless, 0.85 for welded)
Inconel 625 Allowable Stresses (ASME Section II-D, Selected Values)
Temperature | Allowable Stress S (MPa) | Notes |
|---|---|---|
20°C (RT) | 138 | Maximum for room temperature service |
200°C (400°F) | 128 | Slight reduction begins |
400°C (750°F) | 103 | Significant reduction; recheck thickness |
600°C (1110°F) | ~72 | Creep range begins; consider creep-rupture data |
800°C (1470°F) | ~34 | Severely reduced; very thick walls required |
Worked Example
Given: 2" seamless Inconel 625 pipe, SCH 40S (OD = 60.3 mm, t = 3.91 mm), design temperature 200°C, design pressure 15 MPa.
Calculation: trequired = (15 × 60.3) / (2 × 128 × 1.0 + 0.8 × 15) = 904.5 / 268 = 3.37 mm
Result: Required thickness = 3.37 mm. Actual SCH 40S thickness = 3.91 mm. Schedule is adequate (note: add corrosion allowance, typically 0–0.8 mm for Inconel 625 due to its excellent corrosion resistance).
Don't Forget Manufacturing Tolerance
ASTM pipe standards allow a wall thickness tolerance of ±12.5%. Always verify that tactual × 0.875 ≥ trequired. If the margin is tight, upgrade to the next schedule.
Pipe end type affects how the pipe connects to fittings, flanges, and other components. Specify the end type explicitly on your purchase order:
End Type | Description | Typical Application |
|---|---|---|
Beveled End (BE) | End cut at 30–37.5° angle for butt-welding | Process piping, permanent installations, high-pressure systems |
Plain End (PE) | Cut square, no bevel | Socket-weld fittings, threaded connections, instrumentation |
Threaded End (TE) | NPT or API threads cut into the pipe end | Low-pressure utility lines, instrumentation, small-bore piping |
Also specify the full manufacturing standard on the PO. A complete specification should read, for example: "Inconel 625 (UNS N06625) seamless pipe, ASTM B444, Grade 1, 2" NPS SCH 40S, beveled ends, 6 meters random length."
If your application involves exposure to hydrogen sulfide (H₂S)—typical in oil and gas production, refining, and sour gas processing—you must specify NACE MR0175 / ISO 15156 compliance. Inconel 625 is a qualified material under this standard, but compliance must be explicitly requested and certified.
What to Specify for NACE Service
Material: UNS N06625, solution annealed (Grade 1)
Hardness: Maximum 35 HRC (NACE requirement for nickel alloys)
Heat treatment: Solution annealed at 1095°C minimum, rapid cooled
Certification: NACE MR0175/ISO 15156 compliance stated on the Mill Test Report (MTR)
Testing: Hardness test per ASTM E18 (Rockwell) on each heat
⚠ Do Not Skip This Step
NACE compliance is a legal and safety requirement in sour service jurisdictions. A pipe that meets ASTM B444 but lacks NACE certification cannot be used in H₂S-containing environments. The cost of replacing non-compliant pipe after installation is 10–50x the original material cost.
For more on Inconel 625's corrosion resistance mechanisms, including its performance in sour environments, see the dedicated corrosion resistance reference.
Quality verification is the last technical gate before purchase. Specify the following tests and certifications to ensure the pipe meets your specification:
Test / Certificate | Standard | When Required |
|---|---|---|
Chemical Analysis (Heat Analysis) | ASTM E1473 | Always — verify composition matches UNS N06625 |
Tensile Test | ASTM E8/E8M | Always — verify yield, tensile, elongation |
Hydrostatic Test | ASTM B444 §14 | Always for pressure piping — test at 1.5x design pressure |
Non-Destructive Examination (NDE) | ASTM E213 (UT) or E543 | For seamless pipe in critical service; UT longitudinal + transverse |
Intergranular Corrosion Test | ASTM G28 Method A | For corrosive service; verifies proper annealing |
Grain Size Measurement | ASTM E112 | Aerospace applications (typically ASTM 4 or finer) |
PMI (Positive Material Identification) | ASTM E1476 | For mixed-material installations; verifies alloy at delivery |
Mill Test Report (MTR) | EN 10204 3.1 or 3.2 | Always — Type 3.2 requires third-party witness |
Tip: For ASME-coded pressure piping, specify EN 10204 3.1 MTR minimum. For critical or third-party-inspected projects, request EN 10204 3.2 (witnessed and stamped by an independent inspection agency such as SGS, BV, or TUV).

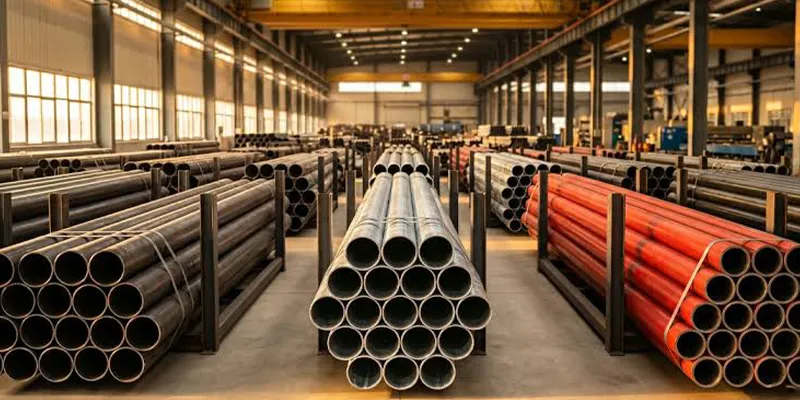

Even with a perfect specification, the wrong supplier can deliver non-conforming material. Evaluate potential suppliers on the following criteria:
Manufacturing Capability: Can they produce the required size, schedule, and standard? Do they have seamless extrusion or welded pipe production lines?
Quality System: ISO 9001 certification minimum. For oil & gas, API Q1 or PED 2014/68/EU. For nuclear, ASME N-stamp.
Testing Capabilities: In-house NDE, mechanical testing, and chemical analysis. Avoid suppliers who outsource all testing—they cannot control quality in real time.
NACE Experience: Can they provide NACE MR0175-compliant material with proper documentation? Ask for previous MTRs as evidence.
Lead Time: Typical lead time for Inconel 625 seamless pipe is 4–8 weeks for standard sizes, 10–16 weeks for non-standard. Plan accordingly.
Material Traceability: Full heat-number traceability from billet to finished pipe. MTR must link to the original melt analysis.
Third-Party Inspection Acceptance: Will they accept SGS, BV, TUV, or client inspector witness at the mill?
Export Experience: Can they handle international shipping, customs documentation, and appropriate packaging for nickel alloy pipe?
What is the difference between ASTM B444 and ASTM B705 for Inconel 625 pipe?
ASTM B444 covers seamless Inconel 625 pipe manufactured by extrusion from a solid billet with no longitudinal weld seam. ASTM B705 covers welded Inconel 625 pipe manufactured by forming plate into a cylinder and welding the longitudinal seam. Seamless pipe (B444) is required for ASME Section VIII pressure vessels and high-pressure cyclic service due to its higher joint factor (1.0) and superior fatigue resistance. Welded pipe (B705) is more cost-effective for medium-pressure, non-cyclic applications and is available in larger diameters up to 24 inches and beyond.
How do I calculate the required wall thickness for Inconel 625 pipe?
Use the ASME B31.3 formula for straight pipe under internal pressure: t = P × D / (2 × S × E + 0.8 × P), where P is design pressure (MPa), D is outside diameter (mm), S is allowable stress from ASME Section II-D (138 MPa at room temperature for Inconel 625), and E is the longitudinal joint factor (1.0 for seamless, 0.85 for non-radiographed welded). For example, a 2-inch SCH 40S seamless Inconel 625 pipe (OD 60.3 mm, wall 3.91 mm) at room temperature has a rated working pressure of approximately 18 MPa. Always verify that the minimum wall thickness (nominal × 0.875 for tolerance) exceeds the calculated required thickness.
Does Inconel 625 pipe comply with NACE MR0175 for sour service?
Yes, Inconel 625 (UNS N06625) is listed in NACE MR0175/ISO 15156 as a qualified material for sour oil and gas service. It is one of the preferred materials for downhole tubing, subsea flowlines, wellhead components, and process piping exposed to H₂S-containing environments. To ensure compliance, specify NACE MR0175 on your purchase order and verify that the Mill Test Report explicitly states NACE compliance, including a maximum hardness of 35 HRC. The material must be in the solution-annealed condition (Grade 1) for optimal sour service performance.
What pipe schedules are available for Inconel 625?
Inconel 625 pipe is available in SCH 5S, 10S, 40S, and 80S per ASME B36.19M for standard sizes from 1/4" to 24" NPS. For high-pressure applications, SCH 160 and XXS (extra extra strong) are available in smaller sizes. The most commonly specified schedules for industrial piping are SCH 40S for general-purpose process lines and SCH 80S for high-pressure service. Wall thickness selection must always be verified by calculation per ASME B31.3 based on design pressure, design temperature, and allowable stress.
Should I choose Inconel 625 Grade 1 or Grade 2 for pipe?
Grade 1 (solution annealed at 1095–1205°C) is the standard choice for the vast majority of piping applications. It offers the best combination of corrosion resistance, ductility (30%+ elongation), weldability, and service temperature range (up to 980°C). Grade 2 (solution annealed + aged at ~730°C) provides higher yield strength (up to 760 MPa) through γ″ (Ni₃Nb) precipitation hardening, but is limited to service below 650°C because the γ″ phase over-ages and dissolves at higher temperatures. Choose Grade 2 only when higher mechanical strength is specifically required and service temperature remains below 650°C.
How long does it take to get Inconel 625 pipe delivered?
For standard sizes (1/2" to 8" NPS, SCH 40S/80S) from stock or regular production, typical lead time is 4–8 weeks. For non-standard sizes, special schedules, or large-diameter welded pipe, expect 10–16 weeks. NACE-compliant material may add 2–4 weeks for additional testing and documentation. Always confirm lead time with your supplier before committing to a project schedule, and consider ordering a 10–15% contingency quantity to cover fitting cuts and field modifications.
