Hastelloy C276 for Pulp and Paper Industry: Full Guide

· Hastelloy C276 (UNS N10276) is the global standard material for chlorine dioxide (ClO2) generators because it is one of very few alloys that resists hot 25–35 % sulfuric acid AND strong oxidisers (chlorate, ClO2) at the same time — titanium fails in the acid, stainless steel fails in the oxidiser.

· In bleach plant D-stage service (0.5–1.5 g/L ClO2, pH 3.5–4.5, 60–80 °C) C276 corrodes at under 0.025 mm/yr (1 mpy), giving washer drums, towers and piping a 20–25 year life versus 3–5 years for 316L.

· C276 keeps corrosion below 0.05 mm/yr in white liquor (NaOH 90–110 g/L + Na2S 30–40 g/L at 90–100 °C), green liquor and digester-strength black liquor at 150–175 °C.

· With a PREN of roughly 68–75, C276 resists chloride pitting, crevice corrosion and stress-corrosion cracking in closed-loop mills where white-water chloride climbs past 1000 ppm — the failure mode that destroys 316L in modern paper machines.

· C276 is supplied as plate (ASTM B575), seamless pipe (B622), welded pipe (B619), tube (B626), bar (B574), forgings/flanges (B564) and fittings (B366), with ASME SB- equivalents for coded vessels and piping.

How to Specify Hastelloy C276 for a Pulp Mill Upgrade: Step-by-Step

1. Identify the corrosion mechanism and dominant species. List every species the surface sees: ClO2 / chlorate, Cl2, NaOH, Na2S, H2SO4, H2O2, chloride, plus pH, temperature and redox potential. Do not average — capture the upset and excursion cases, because those are what kill equipment.

2. Pull real process data, not design data. Get measured values from the DCS: actual temperature profile, liquor solids, residual ClO2, chloride concentration in white water, and the frequency and duration of acid or caustic excursions.

3. Screen candidate alloys against corrosion data. Walk the ladder from 316L → 317LMN → 904L → duplex 2205 / 2507 → 254SMO or AL-6XN → titanium → Inconel 625 → Hastelloy C276. Eliminate any alloy that fails a single species in the list. Titanium is excellent for ClO2 but fails in hot H2SO4 and hot caustic.

4. Check mechanical and code temperature limits. Confirm the design temperature against ASME Section II Part D allowables and the practical corrosion-driven ceiling for the specific liquor or acid service (typically 100–180 °C for mill duties).

5. Specify product form, standard and certification. Nominate the ASTM/ASME specification for each form (B575 plate, B622 seamless pipe, B564 flanges, B366 fittings), plus EN 10204 3.1 or 3.2 certification, positive material identification (PMI), and any supplementary requirements such as intergranular corrosion testing.

6. Define welding and fabrication controls. Require matching filler ERNiCrMo-4 (AWS A5.14), a qualified ASME Section IX WPS/PQR, controlled heat input with interpass temperature held at or below about 93 °C (200 °F), and argon back-purge on root runs.

7. Plan inspection and corrosion monitoring. Install corrosion coupons or electrical-resistance probes in the aggressive zone, schedule UT wall-thickness surveys, and set a baseline after the first outage so you can measure remaining life rather than guess it.

A modern kraft pulp mill is one of the most corrosive environments in heavy industry: chlorine dioxide and chlorate at one end, hot caustic sulphide liquors at the other, and hot sulfuric acid in the middle. Hastelloy C276 (UNS N10276) is the alloy that survives all three. This guide maps exactly where C276 earns its place in a pulp and paper mill — chlorine dioxide generators, bleach plants, digesters, chemical recovery and tall oil plants — with the corrosion rates, alloy comparisons, welding rules and ASTM/ASME standards that mill engineers use to specify it.

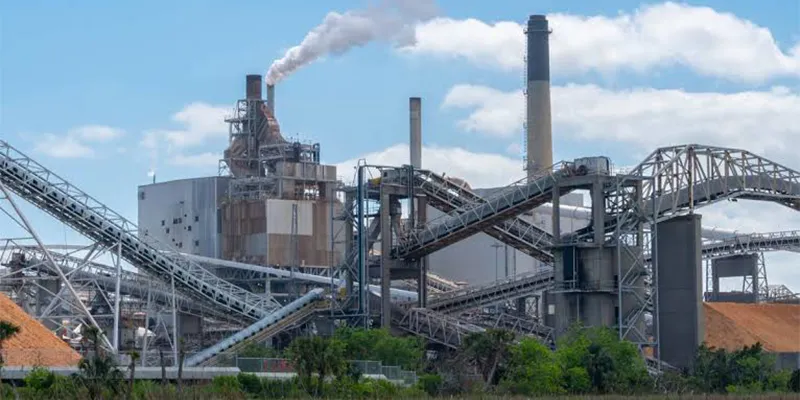

Why Is Hastelloy C276 Used in Pulp and Paper Mills?

C276 is used because it is one of very few alloys that simultaneously resists strong oxidisers (chlorine dioxide, chlorate), hot reducing acids (sulfuric), and hot caustic sulphide liquors — the three corrosives that, between them, destroy stainless steel in every area of a kraft mill.

Most corrosion-resistant alloys are specialists. Titanium is superb in chlorine dioxide but corrodes in hot sulfuric acid and hot caustic. 316L and 904L handle caustic adequately but pit and crevice-corrode in oxidising chloride. Duplex 2205 resists chloride cracking but is limited in hot acid. C276 is a generalist: its 15–17 % molybdenum delivers reducing-acid and chloride resistance, its 14.5–16.5 % chromium provides the oxidising-acid and passivity side, its nickel base gives caustic and chloride stress-corrosion immunity, and 3–4.5 % tungsten adds pitting resistance.

The result is a PREN of roughly 68–75, several steps above the 6 % molybdenum super-austenitics. Equally important, carbon is capped at 0.01 % and silicon at 0.08 %, so C276 can be welded as-welded without the sensitisation that ruined the original Hastelloy C. That combination — broad corrosion resistance plus genuine weldability — is why it became the mill standard. See What Is Hastelloy C276 and C276 chemical composition.

Nominal composition of Hastelloy C276 (UNS N10276) per ASTM B575

Which Pulp Mill Equipment Most Often Uses Hastelloy C276?

The highest-value C276 positions are the chlorine dioxide generator and absorber, D-stage bleach washers and towers, digester top separators and liquor heaters, the hottest black liquor evaporator effects, smelt dissolving tank components, and tall oil acidulation equipment.

Not every part of a mill needs C276 — that would be unaffordable. The alloy is deployed where a specific combination of chemistry, temperature and consequence of failure justifies it. The table below walks a kraft mill from chip feed to paper machine and flags where C276 is the standard choice, where it is a common upgrade, and where cheaper alloys are normally sufficient. This is the map most mill engineers work from when planning a rebuild or an outage replacement.

Where Hastelloy C276 is used in a kraft pulp mill

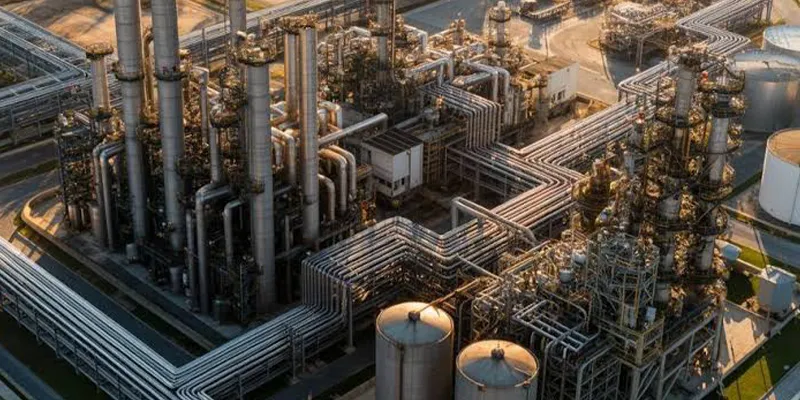

Why Is Hastelloy C276 the Standard Material for Chlorine Dioxide Generators?

C276 is the global standard for chlorine dioxide generators because it is one of very few alloys that survives the simultaneous attack of hot 25–35 % sulfuric acid and strong oxidisers (chlorate and ClO2) — titanium fails in the acid, and stainless steel fails in the oxidiser.

Modern ECF mills generate chlorine dioxide on site, overwhelmingly via methanol-based processes (R8, R10, R11, SVP-LITE, HP-A and similar). The core reaction reduces sodium chlorate with methanol in concentrated sulfuric acid: 6 NaClO3 + CH3OH + 4 H2SO4 → 6 ClO2 + CO2 + 5 H2O + 2 Na3H(SO4)2.

The environment inside the generator is therefore hot, strongly acidic, and strongly oxidising all at once, at 70–85 °C under vacuum, with the added complication of sodium sesquisulfate salt that can deposit and drive under-deposit attack. Titanium, which is otherwise superb in chlorine dioxide, corrodes in hot sulfuric acid and is unusable here. 6 % molybdenum stainless loses passivity in the hot reducing acid.

C276 holds up because its molybdenum handles the acid while its chromium handles the oxidiser. In practice mills specify C276 for the generator vessel, the reboiler or heat exchanger, the circulation loop, the chilled-water absorber, the tail-gas scrubber and the associated pumps and valves — essentially the whole wet end of the ClO2 plant. This is the single most characteristic C276 application in the industry, and it is closely related to the duties described in Hastelloy C276 for acid service and C276 for FGD systems.

How Does Hastelloy C276 Perform in Bleach Plant Washers and Towers?

In D-stage bleach service C276 corrodes at under 0.025 mm/yr (1 mpy), which translates into 20–25 years of washer drum, tower and piping life versus 3–5 years for 316L.

A D stage runs residual chlorine dioxide of roughly 0.5–1.5 g/L at pH 3.5–4.5 and 60–80 °C. That is aggressively oxidising and mildly acidic, and it attacks 316L by pitting and crevice corrosion, particularly at washers where pulp mats and deposits create differential aeration cells. C276's molybdenum and tungsten give it a pitting resistance far above the point where this service becomes a problem, so the life-limiting mechanism shifts from corrosion to mechanical wear and fatigue.

Because washer drums are large, welded fabrications, C276's as-welded corrosion resistance matters as much as its base-metal performance — a sensitisation-prone alloy would fail at the welds. Mills also use C276 for the high-shear mixers that disperse chlorine dioxide into stock, which see the highest local oxidiser concentration in the whole plant. The adjacent E, O and P stages are milder; C276 is used there selectively, most often as an upgrade where an existing 316L or 317L component has failed.

How Does C276 Handle Black Liquor, White Liquor and the Digester?

C276 keeps corrosion below 0.05 mm/yr in white liquor at 90–100 °C, in green liquor at 95–105 °C, and in digester-strength black liquor at 150–175 °C — comfortably better than the stainless grades normally used.

Kraft cooking liquor is caustic and sulphidic: white liquor is roughly 90–110 g/L sodium hydroxide plus 30–40 g/L sodium sulphide (both expressed as Na2O), and the digester runs it against wood chips at 155–175 °C and 7–8 bar. Nickel-base alloys are inherently good in hot caustic, and C276 additionally resists the sulphide without the sulphide stress cracking that limits high-strength materials.

In practice the digester shell itself is usually carbon steel or duplex, because the liquor is not aggressive enough there to justify C276; the alloy is used for the components that see the worst combination of temperature, flow and concentration — top separators, chip chutes, extraction screens, liquor heaters and impregnation vessel internals. The place C276 is most often justified is the black liquor evaporator train, where liquor is concentrated from about 15 % to 65–80 % solids across multiple effects at 130–180 °C.

Concentration raises both temperature and corrosivity, and the hottest effects are where mills see tube thinning, under-deposit attack and vapour-side corrosion. C276 is specified for first-effect tubes and shells, liquor-to-liquor heat exchangers and vapour heads in aggressive mills.

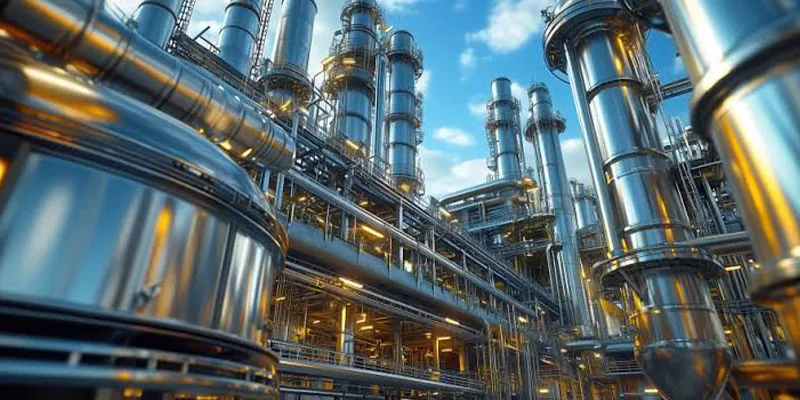

What Role Does Hastelloy C276 Play in the Chemical Recovery Cycle?

In the recovery cycle C276 is used selectively for smelt dissolving tank components, green liquor lines and causticiser internals, and for recovery boiler floor and superheater tubing in mills with high chloride and potassium loads.

The recovery boiler burns concentrated black liquor to recover inorganic chemicals as molten smelt — mostly sodium sulphide and sodium carbonate — at 800–1000 °C. The smelt runs out through spouts into a dissolving tank where it is quenched to green liquor at 95–105 °C.

The spouts see thermal cycling, erosion and a hot caustic sulphide solution, a combination that shortens the life of carbon steel and even stainless; C276 spouts and agitators are a standard upgrade in mills with chronic spout failures. Downstream, green liquor clarifiers, dregs filters, slakers and causticizers are usually carbon steel or stainless, but C276 appears on valves, pump internals and instrument connections that chronically leak or seize.

On the boiler itself, C276 is used for floor tubes, smelt spouts and, in aggressive mills, superheater tubing or composite tubes — because modern mills that run high chloride and potassium loads (from recycled fibre, closed water loops or certain wood species) experience severe superheater corrosion that destroys conventional tubing. This high-temperature duty overlaps with the alloy selection logic in Inconel 625 vs Hastelloy C276.

How Does Hastelloy C276 Perform in Tall Oil and Byproduct Recovery?

C276 is the standard for tall oil acidulation reactors, heat exchangers and spent-acid piping, where hot 30–50 % sulfuric acid plus organics at 90–130 °C quickly destroys stainless steel.

Crude tall oil is recovered by skimming soap from black liquor and acidulating it with sulfuric acid at 90–130 °C. The resulting mixture is hot, acidic, high in sulfate and full of organic fatty and resin acids, with the spent acid phase leaving the process at pH 2–3. This duty sits squarely in the region where stainless steel loses its passive film and even 904L and 6 % molybdenum grades struggle, whereas C276's molybdenum content is designed for exactly this kind of hot reducing acid.

Mills report C276 corrosion in the 0.13–0.5 mm/yr band depending on acid strength, temperature and organic loading — high enough that wall thickness and inspection intervals matter, but low enough to give a serviceable equipment life where stainless would fail in months. Turpentine recovery and lignin precipitation lines are similar, and C276 is used there on the same basis.

What Corrosion Rates Should You Expect from C276 in Pulp Mill Service?

Expect under 0.025 mm/yr in chlorine dioxide bleach service, under 0.05 mm/yr in white, green and digester-strength black liquor, 0.05–0.13 mm/yr in strong black liquor and wet chlorine, and 0.13–0.5 mm/yr in tall oil acidulation — always verified against your own mill chemistry.

The table below summarises typical corrosion rates for C276 in the media a pulp mill actually contains. Two caveats matter. First, these are indicative ranges drawn from published laboratory and field data, not guaranteed values — actual rates depend on concentration, temperature, velocity, aeration, deposit formation and upset frequency.

Second, the upset case usually governs: a washer that sees 0.5 g/L chlorine dioxide in normal operation may see several times that during a control excursion, and it is the excursion that sets the material choice. Use these numbers for screening and budgeting, then confirm with corrosion coupons or a probe in the actual circuit before committing to a large fabrication.

Typical Hastelloy C276 corrosion rates in pulp and paper environments

How Does Hastelloy C276 Compare to 316L, Duplex, 254SMO and Titanium?

C276 sits at the top of the mill alloy ladder: 316L is cheapest but fails in oxidising chloride, duplex and 254SMO handle bleach service well at lower cost, titanium matches C276 in ClO2 but fails in hot acid and hot caustic, and C276 is the only one that covers every duty in the mill.

Material selection in a mill is a ladder — you climb only as far as the chemistry forces you. The table below ranks the common candidates by PREN and shows where each one breaks down. The key insight is that no single index tells the whole story: titanium has no meaningful PREN yet outperforms everything in wet chlorine and chlorine dioxide, because its corrosion resistance comes from a different mechanism (a very stable oxide in oxidising media) that collapses in reducing acid.

Conversely 254SMO scores well on PREN and is genuinely excellent in D-stage service, but it is still a stainless steel and will lose passivity in hot sulfuric acid. C276 is chosen when the duty is too mixed, too hot, or too consequential to bet on a specialist. Detailed comparisons are available for Inconel 625 vs C276, C22 vs C276 and Incoloy 825 vs C276.

Alloy selection ladder for pulp and paper mill service

For deeper background on the stainless and super-austenitic options, see 904L stainless, 254SMO, AL-6XN, duplex 2205 and super duplex 2507.

Should You Choose Hastelloy C276 or Titanium for a Bleach Plant?

Choose titanium for clean chlorine dioxide, hypochlorite or wet chlorine duty where the circuit never sees hot acid or hot strong caustic. Choose C276 when the circuit can see hot sulfuric acid, hot caustic above about 10 %, or acid excursions — all of which attack titanium. C276 is also the safer choice where dry chlorine could form, because titanium can ignite in it.

This is the single most common material debate in a bleach plant, and there is a genuine cost argument for titanium: it is typically 15–25 % cheaper than C276 and its performance in chlorine dioxide is outstanding, which is why it is widely used for D-stage washers, ClO2 absorbers and hypochlorite equipment. The decision turns on three titanium limitations.

First, titanium corrodes in sulfuric acid — the moment acid carryover or an acid-cleaning cycle enters the circuit, titanium is at risk. Second, titanium corrodes in hot concentrated caustic, so it is unsuitable for E-stage extraction and caustic service.

Third, titanium is a fire risk in dry chlorine gas, which constrains its use in certain generator and chlorination duties. C276 has none of these limits. In practice many mills run a mixed strategy: titanium where the chemistry is clean and stable, C276 at the interfaces, in the generator, and anywhere the chemistry can swing. If your mill has a history of unexplained titanium failures, the cause is almost always an acid or caustic excursion that C276 would have absorbed.

What Are the Temperature Limits of C276 in Pulp and Paper Service?

Mechanically C276 is listed to about 677 °C (1250 °F), but pulp mill duties are limited by corrosion, not strength: roughly 100–120 °C in chlorine dioxide and acid service, 150–180 °C in black and white liquor, and 90–130 °C in tall oil acidulation.

It is easy to misread the mechanical temperature limit. ASME Section II Part D does list C276 allowables up to about 677 °C, which reflects creep and tensile strength in clean service — but no pulp mill duty runs anywhere near that in a corrosive medium, because corrosion rate climbs with temperature and would consume the equipment first.

The practical ceiling is set by the corrosion data: in chlorine dioxide and sulfuric acid, mills hold C276 to about 100–120 °C; in caustic liquor service the alloy is comfortable to 150–180 °C; in tall oil acidulation it is used to about 130 °C with an allowance for the higher corrosion rate. Separately, C276 should not be held long-term in the 550–1090 °C band because intermetallic phases (mu and sigma) precipitate and embrittle it — irrelevant for pulp mill equipment, which never approaches that range, but worth knowing when C276 components are used in recovery boiler gas paths. Full envelope in Hastelloy C276 temperature limits.

How Does C276 Resist Chloride Pitting, Crevice Corrosion and SCC?

C276 resists all three through the combination of high molybdenum and tungsten (pitting and crevice resistance, PREN ~68–75) and a nickel base (immunity to chloride stress-corrosion cracking) — which is why it survives closed-loop mills where white-water chloride exceeds 1000 ppm.

Modern mills recycle water aggressively, and chloride concentrates in the loop. Once white water reaches a few hundred to a few thousand ppm chloride at 40–60 °C, 316L becomes unreliable: it pits under deposits, crevice-corrodes at gaskets and lap joints, and above roughly 60 °C it can suffer chloride stress-corrosion cracking, which is a sudden, brittle failure mode. C276 addresses all three mechanisms at once. Molybdenum and tungsten raise the pitting potential and raise the critical crevice temperature well above anything a paper machine sees.

The nickel base makes the alloy essentially immune to chloride SCC — a property no stainless steel fully shares, including duplex and 6 % molybdenum grades, which resist it far better than 316L but are not immune in the most aggressive combinations of chloride, temperature and tensile stress. This is why C276 is used for suction roll shells, headbox internals and white-water chests in the worst closed-loop circuits. Lighter-duty circuits are usually served by 2205, 2507 or 254SMO at lower cost — see duplex 2205 pipe and ASTM A790 duplex pipe.

How Do You Weld and Fabricate C276 for Pulp Mill Equipment?

Weld C276 with matching ERNiCrMo-4 filler, control heat input with interpass temperature at or below about 93 °C (200 °F), back-purge root runs with argon, and in most cases put the equipment into service as-welded with no post-weld anneal.

C276 was developed specifically to fix the weld-sensitisation problem of the original Hastelloy C, and it does so by holding carbon to 0.01 % maximum and silicon to 0.08 % maximum. With so little carbon available, chromium carbides cannot precipitate in the heat-affected zone during welding, so the as-welded HAZ retains the corrosion resistance of the base metal. That is what makes large shop-fabricated C276 equipment — washer drums, generator vessels, towers — practical.

The practical rules are: use matching-composition filler (ERNiCrMo-4 for GTAW/GMAW, ENiCrMo-4 for SMAW) so the weld metal does not become the weak link; qualify the procedure to ASME Section IX; keep interpass low and heat input moderate to avoid excessive grain growth; back-purge with argon on root runs to prevent sugaring and oxide inclusions; and clean rigorously, because sulphur, phosphorus, lead, oil and paint residues cause hot cracking in nickel alloys.

Post-weld solution annealing at about 1121 °C (2050 °F) with rapid quench is available if the service is unusually severe, but it is rarely needed. Full procedure in the C276 welding guide, and machining guidance in C276 machining tips.

Which Product Forms of C276 Are Used in Pulp and Paper Mills?

Mills buy C276 as plate for drums and vessels, seamless and welded pipe for process lines, tube for heat exchangers and reboilers, bar for shafts and machined internals, and forgings, flanges and fittings to complete the piping system — each governed by a specific ASTM specification.

Specifying the right product form against the right ASTM specification matters because the standards differ in chemistry limits, mechanical requirements, heat treatment condition and testing. Ordering plate to B575 when you need seamless pipe to B622 is the kind of error that delays a shutdown. The table below is the specification map most mill procurement teams work from.

Hastelloy C276 product forms and governing ASTM/ASME specifications

Browse available stock and forms: C276 plate and sheet, C276 pipe, C276 round bar, C276 bars, C276 flanges, C276 pipe fittings and ASTM B564 N10276 flange dimensions.

Which ASTM and ASME Standards Govern C276 Mill Equipment?

Material supply is governed by the ASTM B-series specifications (B575, B622, B619, B626, B574, B564, B366) and their ASME SB- equivalents; vessel and piping construction is governed by ASME Section VIII Division 1, ASME B31.3 and ASME Section II Part D; welding is qualified to ASME Section IX with AWS A5.14 filler.

Mill equipment is coded construction — pressure vessels and process piping — so the material specification alone is not enough. The build has to satisfy the applicable construction code, and the material has to be listed in that code.

In practice a C276 specification package contains the ASTM material specification, the ASME SB- equivalent for coded items, the construction code (Section VIII Division 1 for vessels, B31.3 for piping), the allowable stresses from Section II Part D, the welding procedure and qualification from Section IX, and the filler classification from AWS A5.14. Where the mill has sour or reduced-sulphur duties, NACE MR0175 / ISO 15156 may also apply.

Industry-specific practice is guided by TAPPI, the Technical Association of the Pulp and Paper Industry, which publishes test methods and mill practice for pulp and papermaking rather than material specifications.

Standards landscape for Hastelloy C276 pulp mill equipment

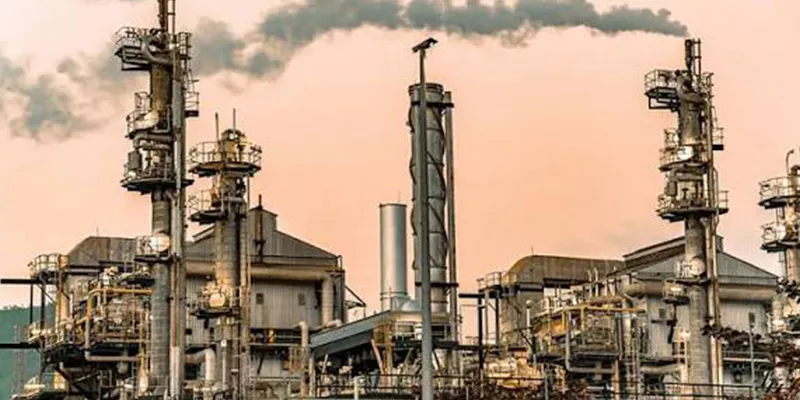

How Do ECF and TCF Bleaching Sequences Affect Material Selection?

ECF bleaching is built around chlorine dioxide, so C276 and titanium dominate the bleach plant. TCF sequences use oxygen, ozone and hydrogen peroxide, which are individually milder but introduce very strong oxidisers (ozone) and alkaline peroxide that still require C276 or 6 % molybdenum stainless in the hottest stages.

Elemental chlorine free (ECF) bleaching replaced elemental chlorine with chlorine dioxide and now accounts for the overwhelming majority of bleached kraft pulp. That single substitution is why chlorine dioxide generators exist and why C276 became a mill standard. Totally chlorine free (TCF) sequences go further, using oxygen delignification, ozone (Z stage) and hydrogen peroxide (P stage).

Removing chlorine species sounds like it should relax materials, and downstream of the bleach plant it partly does, but ozone is a stronger oxidiser than chlorine dioxide and attacks both stainless and titanium, while alkaline peroxide at 70–90 °C is corrosive to stainless in its own right. In practice TCF plants still specify C276 for ozone reactor internals, peroxide towers and the associated oxidiser handling, and use duplex or 6 % molybdenum stainless for the milder washing stages. The selection method is unchanged: identify every species, including the excursion cases, then pick the cheapest alloy that survives all of them.

What Is the Lifecycle Cost Case for C276 in a Pulp Mill?

C276 costs roughly three to five times more per kilogram than 316L, but a bleach plant outage costs tens to hundreds of thousands of dollars per day in lost production, and replacing a washer drum every 3–5 years instead of every 20–25 years means the premium is usually repaid by the first avoided outage.

Material selection in a mill is almost always argued on purchase price and almost always decided by lifecycle cost. The arithmetic is straightforward. A 316L D-stage washer drum might last 3–5 years before pitting and crevice corrosion force a repair or replacement; a C276 drum in the same position routinely reaches 20–25 years. That is four to six replacement cycles avoided, each of which carries not just the cost of new steel and fabrication but a shutdown, crane time, and lost production.

Add the secondary savings: C276 needs no coating or lining maintenance, tolerates process excursions that would destroy a marginal alloy, and can be inspected on a longer interval. The honest counter-argument is that C276 is over-specified for mild duties — a caustic line at 60 °C does not need it, and duplex or 254SMO will do the job for less.

The discipline is to spend C276 money only where the chemistry or the consequence justifies it, which is exactly what the equipment map earlier in this article is for. Guidance on selection by duty is also available in how to choose nickel alloy pipe for chemical plants and selection by acid type.

What Inspection and Maintenance Practices Extend C276 Equipment Life?

Install corrosion coupons or resistance probes in the aggressive zone, take UT wall-thickness readings at fixed grid points every outage to build a real trend, inspect welds and crevices for under-deposit attack, and keep chlorine dioxide residual within the design band.

C276 is low-maintenance but not zero-maintenance, and the failures that do occur are usually process-driven rather than material-driven. Three practices give the best return.

First, measure rather than assume: a UT thickness survey at the same marked grid points at each outage turns a guess about remaining life into a trend line you can extrapolate to the next shutdown. Second, watch the deposits — under-deposit attack is the most common localised mechanism in washers and evaporators, so cleaning and inspecting under mats, scale and salt deposits matters more than inspecting clean surfaces. Third, control the process: the single most common cause of premature C276 failure is an excursion outside the chemistry the alloy was specified for, typically a chlorine dioxide or acid upset.

Coupons or electrical-resistance probes in the aggressive zone give early warning of exactly that. Finally, keep welding repairs to a qualified procedure with matching filler — a field repair with the wrong rod is a classic way to create a local failure in an otherwise sound vessel.

When Should You Choose C22 or C2000 Instead of C276?

Choose Hastelloy C22 when the duty is more oxidising than C276 comfortably handles, and C2000 when the circuit swings repeatedly between oxidising and reducing conditions.

C276 is the balanced generalist, but its chromium is only 15–16 %, which caps its oxidising-acid performance. Hastelloy C22 raises chromium to about 22 % while keeping molybdenum around 13 %, which shifts the balance towards oxidising media — it outperforms C276 in high residual chlorine dioxide at low pH, and where ferric or cupric ions contaminate the circuit, both of which are strongly oxidising.

In a mill, that typically means the most aggressive point in the bleach plant or the ClO2 absorber rather than the whole circuit. Hastelloy C2000 adds copper to the C22-type base and is designed for mixed oxidising and reducing service where conditions swing; it is the choice when a single piece of equipment sees both acid and oxidiser in different phases of a cycle. In most mills C276 remains the default because it is the best established, most widely stocked and most cost-effective of the three for the great majority of duties. See C22 vs C276, C22 vs C276 selection guide, difference between C22 and C276 and Hastelloy C2000.

How Do You Specify and Source C276 for a Pulp Mill Project?

Specify the product form against its ASTM/ASME specification, require EN 10204 3.1 or 3.2 certification and positive material identification, nominate the welding filler and procedure, and confirm the construction code — Section VIII for vessels, B31.3 for piping.

A complete C276 purchase package has five elements, and missing any one of them is what causes shutdown delays.

First, the product form and specification: state ASTM B575 plate, B622 seamless pipe, B564 flanges and so on, with the ASME SB- equivalent where the item is coded. Second, certification: EN 10204 3.1 for standard supply, 3.2 where third-party verification is required, and positive material identification on delivery to prevent a mix-up with a cheaper alloy. Third, supplementary testing where the duty warrants it — intergranular corrosion testing per ASTM G28 is common for nickel alloys in acid service. Fourth, the fabrication package: ERNiCrMo-4 filler, an ASME Section IX qualified WPS/PQR, interpass limits and back-purge requirements. Fifth, dimensional and code documentation: ASME Section VIII data reports for vessels, B31.3 compliance for piping.

Sourcing early matters too — C276 plate and seamless pipe are not always ex-stock in the heavier gauges and larger diameters a mill needs, so long-lead items should be committed before the outage is scheduled. JN Alloy supplies the full range with mill certification; start from the Hastelloy C276 hub or the C276 product page, and related duties are covered in C276 for chemical plants, C276 for acid service and chemical equipment.

Quick Reference: C276 Design Inputs for Pulp Mill Service

Quick reference design inputs for Hastelloy C276 in pulp and paper mills

Frequently Asked Questions About Hastelloy C276 in Pulp and Paper Mills

Q1. Why is Hastelloy C276 used in pulp and paper mills?

C276 is used because it resists the three corrosives that destroy ordinary stainless steel in a kraft mill at the same time: strong oxidisers (chlorine dioxide and chlorate), hot sulfuric acid, and hot caustic sulphide liquors. Its 15–17 % molybdenum plus 14.5–16.5 % chromium gives a PREN of roughly 68–75, and its 0.01 % maximum carbon allows welding without sensitisation. See What Is Hastelloy C276 for the alloy fundamentals.

Q2. Is Hastelloy C276 the standard material for chlorine dioxide generators?

Yes. C276 is the global industry standard for chlorine dioxide generator vessels, reboilers, circulation piping, absorbers and scrubbers. Methanol-based generators (R8, R10, R11, SVP-LITE, HP-A types) run sodium chlorate with 25–35 % sulfuric acid at 70–85 °C, and C276 is one of very few alloys that survives both the hot acid and the strong oxidiser in the same circuit.

Q3. What corrosion rate does C276 give in a D-stage bleach washer?

In D-stage service with 0.5–1.5 g/L residual chlorine dioxide at pH 3.5–4.5 and 60–80 °C, C276 typically corrodes at under 0.025 mm/yr (1 mpy). That is why washer drums, vats, decker cylinders and filtrate piping in C276 routinely reach 20–25 years, compared with 3–5 years for 316L in the same position.

Q4. Should I choose Hastelloy C276 or titanium for a bleach plant?

Titanium is excellent in chlorine dioxide, hypochlorite and wet chlorine, and it costs less than C276, so it is widely used in bleach plants. Choose C276 instead when the circuit also sees hot sulfuric acid, hot strong caustic, or acid excursions — titanium corrodes rapidly in H2SO4 and in caustic above about 10 % at elevated temperature, and it is a fire risk in dry chlorine.

Q5. How does C276 perform in black liquor and white liquor?

C276 holds corrosion below 0.05 mm/yr in white liquor (NaOH 90–110 g/L with Na2S 30–40 g/L at 90–100 °C), in green liquor at 95–105 °C, and in digester-strength black liquor at 150–175 °C. In strong black liquor at 65–80 % solids and 130–180 °C in the evaporator effects, expect roughly 0.05–0.13 mm/yr.

Q6. Where in a kraft mill is Hastelloy C276 actually installed?

The highest-value positions are the chlorine dioxide generator and its absorber and scrubber, the D-stage bleach washers and towers, ClO2 mixers and piping, digester top separators and liquor heaters, the hottest black liquor evaporator effects, smelt dissolving tank spouts, tall oil acidulation reactors and spent-acid piping, and the most aggressive wet-end paper machine components in high-chloride closed-loop mills.

Q7. What temperature can Hastelloy C276 handle in pulp mill service?

Mechanically, ASME Section II Part D lists C276 to about 677 °C (1250 °F), but pulp mill duties are limited by corrosion, not strength. Practical ceilings are roughly 100–120 °C in chlorine dioxide and acid service, 150–180 °C in black and white liquor, and 90–130 °C in tall oil acidulation. See Hastelloy C276 temperature limits for the full envelope.

Q8. Can Hastelloy C276 be welded without losing corrosion resistance?

Yes, and this is C276's defining advantage over the original Hastelloy C. With carbon capped at 0.01 % and silicon at 0.08 %, C276 does not sensitise in the heat-affected zone, so welded equipment is normally put into service as-welded without post-weld annealing. Use matching ERNiCrMo-4 filler and keep interpass temperature at or below about 93 °C. Full procedure in the C276 welding guide.

Q9. What filler metal is used to weld Hastelloy C276?

Matching composition filler ERNiCrMo-4 (AWS A5.14) is used for GTAW and GMAW, and ENiCrMo-4 covered electrodes for SMAW. Using a matching filler keeps the weld metal corrosion resistance equal to the base metal, which matters in ClO2 and acid service where a non-matching weld would corrode preferentially.

Q10. How does C276 compare with 254SMO and AL-6XN in a bleach plant?

254SMO and AL-6XN (both 6 % Mo super-austenitics, PREN about 43) perform well in D-stage service and cost less than C276, so they are common on washer drums. C276 wins when the circuit also sees hot sulfuric acid, higher temperature, or acid excursions, because 6 % Mo stainless loses its passive film in hot reducing acid where C276 does not. Compare chemistry in 254SMO vs 904L and 254SMO properties.

Q11. Is Hastelloy C276 better than Inconel 625 for pulp mills?

For wet corrosion duties C276 is generally better: its higher molybdenum gives superior resistance to reducing acids and to localised attack in chloride/acid mixtures. Inconel 625 is stronger at high temperature and is preferred for recovery boiler superheaters and hot gas paths. The two are compared in detail in Inconel 625 vs Hastelloy C276.

Q12. Does C276 resist chloride stress-corrosion cracking in paper machine white water?

Yes. C276 is essentially immune to chloride stress-corrosion cracking, which is the failure mode that ends 316L service life once white-water chloride climbs above a few hundred ppm at 50–60 °C. Duplex 2205 and 254SMO also resist it well and cost less, so C276 is reserved for the most aggressive closed-loop circuits where chlorides exceed roughly 1000 ppm or where residual oxidiser is present.

Q13. What ASTM specifications cover Hastelloy C276 mill equipment?

Plate, sheet and strip are ASTM B575; seamless pipe and tube B622; welded pipe B619; welded tube B626; rod and bar B574; forgings and flanges B564; factory-made fittings B366. The ASME equivalents (SB-575, SB-622, SB-619, SB-626, SB-574, SB-564, SB-366) are used for coded vessels and piping under ASME Section VIII and B31.3.

Q14. Why is C276 used in tall oil plants?

Tall oil recovery acidulates black liquor soap with sulfuric acid at 90–130 °C, producing a hot acid, sulfate-rich, organic-laden liquor at pH 2–3 that quickly attacks stainless steel. C276 handles the acidulation reactors, heat exchangers, piping and spent-acid lines, typically at 0.13–0.5 mm/yr depending on acid strength and temperature.

Q15. How does ECF versus TCF bleaching change material selection?

ECF (elemental chlorine free) bleaching is built around chlorine dioxide, so C276 and titanium dominate the bleach plant. TCF (totally chlorine free) sequences replace ClO2 with oxygen, ozone and hydrogen peroxide, which are milder on alloys — but ozone is a very strong oxidiser and peroxide at high pH and temperature still requires C276 or 6 % Mo stainless in the hottest stages.

Q16. What is the lifecycle cost case for C276 in a pulp mill?

C276 costs roughly three to five times more per kilogram than 316L, but a bleach plant outage can cost tens to hundreds of thousands of dollars per day in lost production. Replacing a 316L washer drum every 3–5 years versus a C276 drum lasting 20–25 years almost always repays the material premium within the first avoided outage, before counting reduced inspection and coating maintenance.

Q17. Which product forms of C276 does a pulp mill buy?

Mills buy plate for washer drums, towers and vessel shells, seamless and welded pipe for ClO2 and liquor lines, tube for heat exchangers and reboilers, bar for shafts and machined internals, and forgings, flanges and fittings for the piping system. Browse C276 plate and sheet, C276 pipe, C276 round bar and C276 flanges.

Q18. How do you inspect and maintain C276 equipment in a mill?

C276 needs far less attention than coated carbon steel, but good practice is: install corrosion coupons or resistance probes in the aggressive zone, take UT wall-thickness readings at the same grid points every outage to build a real corrosion trend, inspect welds and crevices visually for deposit-driven under-deposit attack, and keep chlorine dioxide residual within the design band so you do not create an excursion the material was never specified for.

Q19. When should C22 or C2000 replace C276 in a pulp mill?

Choose Hastelloy C22 when the duty is more oxidising than C276 can comfortably handle — for example high residual ClO2 with lower pH, or ferric or cupric contamination — because C22 has about 22 % chromium versus C276's 15–16 %. Choose C2000 when the circuit swings between oxidising and reducing conditions. See C22 vs C276 and Hastelloy C2000.

Q20. Does Hastelloy C276 resist caustic and sulphide in the recovery cycle?

Yes. The nickel base gives C276 excellent resistance to hot concentrated caustic, which is why it is used for smelt dissolving tank spouts, green liquor lines and causticising equipment. It also handles the sulphide in black, white and green liquor without the sulphide stress cracking that limits harder or higher-strength materials.
