How to Choose Hastelloy C276 Pipes: Selection Guide

Choosing C276 pipe comes down to five decisions in a fixed order - product specification, size and schedule, verified wall thickness, matching components and certification. Most costly mistakes are not metallurgical. They are a welded pipe supplied where seamless was required, a wall thickness that ignored the 12.5% mill tolerance, or a certificate that never arrived.

Hastelloy C276 (UNS N10276) is the default answer whenever a pipe has to carry mixed acids, hydrochloric acid, wet chlorine or chloride-bearing oxidising streams. But choosing the alloy is only the first gate. The pipe you actually buy has a specification, a size, a schedule, a wall tolerance, a joint efficiency, a filler metal and a certificate - and any one of those can undo the corrosion performance you paid for.

This guide walks through the selection sequence used by process piping engineers and procurement teams, with the numbers you need at each step. It complements the Ultimate Guide to Hastelloy C276 and links to specialist articles for each area.

How Do You Choose the Right Hastelloy C276 Pipe in Eight Steps?

Bottom line: Work in a fixed sequence: service envelope, alloy confirmation, ASTM specification, construction route, size and schedule, ASME B31.3 wall check, matching components, then certification. Skipping the alloy comparison or the wall calculation is what causes expensive mistakes, not exotic metallurgy.

1. Define the service envelope. Record the fluid composition, acid concentration, chlorides, oxidising contaminants, design pressure, design temperature, flow velocity and required design life. Every later decision depends on this list, so write it down before you look at a price.

2. Confirm C276 is the right alloy. Check the service against alternatives. C276 wins on hydrochloric acid, wet chlorine, mixed acids and FGD liquors. If your duty is mainly clean sulfuric acid below 80 °C, Alloy 20 may cost less and last longer.

3. Select the ASTM product specification. Choose ASTM B622 for seamless pipe, B619 for welded pipe and B626 for welded tube. Use the ASME SB- counterpart whenever the line falls under B31.3 or Section VIII jurisdiction.

4. Choose seamless or welded construction. Seamless gives an E factor of 1.0 and has no longitudinal seam, so it suits high pressure and small bores. Welded pipe costs less and reaches larger diameters, making it the default for NPS 14 and above.

5. Fix the nominal size and schedule. Select NPS and schedule from ASME B36.19M. Common corrosion-service choices are Sch 10S for low-pressure transfer and Sch 40S for pressure lines and threaded connections.

6. Verify the wall against ASME B31.3. Check t = P·D / [2(S·E + P·Y)], then add the mill tolerance, a corrosion allowance and any allowance for threading or bending. Specify minimum wall rather than nominal wall when the corrosion allowance is tight.

7. Match every component in the pressure boundary. Specify N10276 fittings to ASTM B366, flanges to B564 and grade-compatible valve bodies, plus ERNiCrMo-4 filler metal. The weakest component sets the service life of the whole line.

8. Specify certification and inspection. Require an EN 10204 3.1 certificate with full ladle chemistry and mechanical results, hydrostatic testing, PMI screening and intergranular corrosion testing to ASTM G28 where the pipe will be welded or will run hot.

The order matters because each step narrows the options for the next one. You cannot pick a schedule until you know the design pressure, and you cannot price construction until you know the diameter. Engineers who jump straight to 'NPS 4 Sch 40S seamless C276' often discover late that a thinner Sch 10S wall would have carried the load with a defined corrosion allowance - or that the line needed minimum wall to survive 20 years.

The eight steps are also exactly how a request for quotation should be written, because each step produces one line of the final specification. If a supplier can fill in all eight lines without asking you a question, your enquiry is complete and the quote will be accurate.

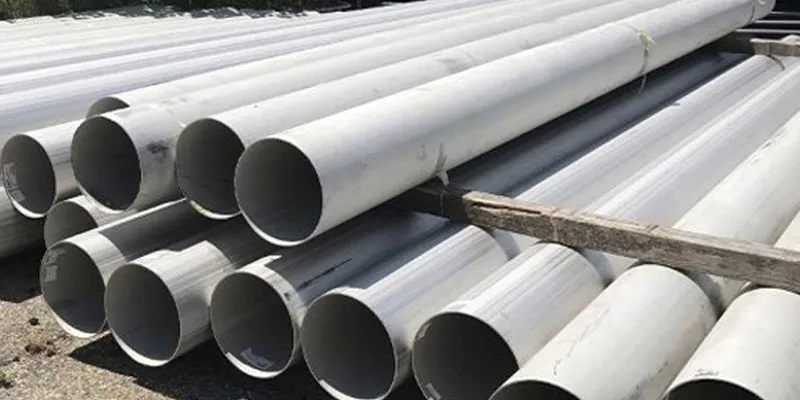

Which ASTM Specification Governs Hastelloy C276 Pipe - B622, B619 or B626?

C276 pipe is covered by three separate ASTM specifications, and the correct one depends on how the pipe is made and how it is dimensioned, not on the grade. B622 is seamless, B619 is welded pipe, and B626 is welded tube.

C276 pipe specifications and the product forms they cover

Note that B622 covers both pipe and tube because it defines a seamless product, so the same specification number appears on heat exchanger tube orders and on NPS schedule pipe orders. What changes is the dimension call-out: pipe is ordered by NPS and schedule, tube by outside diameter and wall thickness.

Once the installation falls under a pressure code, the ASME SB- editions govern. The chemistry is identical, but SB- material carries the additional stamping, certification and code allowances that B31.3 and Section VIII expect. See the full list in ASTM Standards for Hastelloy C276.

Should You Specify Seamless or Welded C276 Pipe?

Bottom line: Specify seamless B622 when pressure is high, the bore is small, or the service is severe; specify welded B619 for large diameters and moderate pressure, where it typically saves 10-25% per metre. Neither construction is intrinsically more corrosion resistant once the pipe has been solution annealed.

Seamless versus welded C276 pipe

The E factor is the hidden arithmetic behind the price difference. Under ASME B31.3 Table A-1B, a seamless pipe has a joint efficiency of 1.0, while welded pipe starts at about 0.85 unless the weld receives full radiographic examination. That means for identical numbers on paper, a welded pipe must either be thicker or carry a lower allowable pressure.

Corrosion behaviour is essentially equal after a full solution anneal at 1120-1175 °C with rapid quench, because the anneal homogenises both the weld metal and the heat-affected zone. C276's corrosion resistance comes from its 15-17% molybdenum and 14.5-16.5% chromium plus 3-4.5% tungsten, which are present regardless of construction route. What differs is the statistical risk of a seam defect - which is why high-integrity lines default to seamless.

What Pipe Sizes and Schedules Can You Actually Buy in C276?

Bottom line: Seamless C276 pipe is routinely stocked from NPS 1/8 to 12 in Schedules 10S, 40S and 80S per ASME B36.19M. Welded pipe extends to 48 in. and beyond, and Schedule 5S is available for low-pressure ducting and transfer lines.

Common C276 pipe dimensions per ASME B36.19M

Notice how flat Schedule 10S walls are across the range - only 3.05 mm at NPS 4 and 3.76 mm at NPS 8. That is why large-bore Schedule 10S C276 lines are usually low-pressure ducting rather than process headers. The trade-off between Schedule 40 and Schedule 80 becomes relevant whenever the line carries pressure above a few bar or needs mechanical strength for supports and branches.

For heat exchangers and instrumentation, forget schedules entirely and specify tube by outside diameter and wall thickness - a 19.05 mm OD x 1.65 mm wall tube is a common C276 condenser size, for example. Above NPS 12, availability shifts almost entirely to welded construction because extrusion presses cannot economically make larger seamless nickel-alloy pipe.

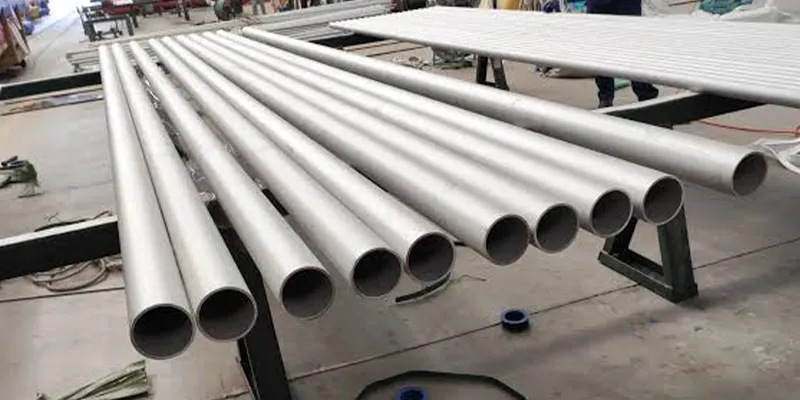

How Do You Calculate the Required Wall Thickness for C276 Pipe?

Use the ASME B31.3 paragraph 304.1.2 equation t = P·D / [2(S·E + P·Y)], then add the mill tolerance, a corrosion allowance and any allowance for threading or bending. Order minimum wall whenever the corrosion allowance is a meaningful part of the total.

The variables are: P is the internal design gauge pressure, D the outside diameter, S the allowable stress at the design temperature, E the longitudinal joint quality factor and Y a temperature coefficient. Y is 0.4 for temperatures below 482 °C (900 °F) for austenitic and nickel alloys, and E is 1.0 for seamless pipe.

Allowable stress note: this article uses a derived ambient value of 188 MPa (27.3 ksi) for N10276, which is two thirds of the specified minimum yield strength of 41 ksi per ASTM B622 - the governing B31.3 criterion for alloys whose yield-to-tensile ratio is low. Always confirm the final figure against ASME B31.3 Table A-1 in the Code edition your project invokes, because the Code regresses the lower bound of a multi-heat database and therefore publishes values that are usually lower than a single-heat derivation.

Indicative pressure capability of C276 pipe at ambient temperature (derived, E = 1.0, Y = 0.4)

Two columns appear for each schedule because standard pipe is sold to a nominal wall with a minus tolerance of 12.5%. The right-hand number assumes the thinnest wall the mill may legally ship. The derivation cross-checks well against published industry data: a 2 in. Schedule 40S pipe comes out at about 223 bar (3,240 psi), which matches the figure commonly quoted by nickel pipe suppliers.

A worked example makes the method clear. Take NPS 4 pipe carrying 25 bar (2.5 MPa) at 200 °C, with an allowable stress of about 143 MPa at that temperature and a design corrosion allowance of 1.5 mm. In megapascals and millimetres the equation gives t = 2.5 x 114.3 / [2(143 x 1.0 + 2.5 x 0.4)] = 0.99 mm of pressure-carrying wall. Dividing by 0.875 absorbs the mill tolerance and lifts the requirement to 1.13 mm; adding the 1.5 mm corrosion allowance gives a required minimum wall of 2.63 mm. Schedule 10S at NPS 4 delivers 3.05 mm nominal and 2.67 mm at the tolerance limit, so it complies with almost no margin - most engineers step up to Schedule 40S to buy inspection life.

Which Acids and Process Conditions Actually Require C276 Pipe?

C276 pipe earns its cost in hydrochloric acid at any appreciable concentration, wet chlorine and chlorine dioxide, mixed acid streams, FGD scrubber liquor, bleach plant filtrates and sour gas condensate. It is not automatically the right choice for clean sulfuric acid, where a cheaper alloy usually performs better.

Service suitability of solid C276 pipe

The counter-intuitive case is clean sulfuric acid. In reagent-grade acid near 80 °C Alloy 20 can post corrosion rates several times lower than C276 because copper and iron ions in the commercial acid suppress attack. That is why reading the acid-specific data beats following a reflex - start with C276 for acid service and the hydrochloric acid selection guide before committing the specification.

For deeper acid-by-acid data across nickel alloys, the acid-type selection matrix is the most detailed reference on this site.

When Is Clad or Lined Pipe a Better Buy Than Solid C276 Pipe?

Above roughly NPS 6, and wherever pressure is moderate and the fluid does not attack thin linings mechanically, a lined or clad pipe can cut material cost by 40-70%. Choose solid C276 whenever there is vacuum, frequent thermal cycling, high pressure, high velocity or erosion.

Solid versus lined and clad alternatives for aggressive piping

The economics are dominated by metal volume. A 10 in. pipe costs roughly ten times the alloy per metre of a 1 in. pipe, so above about NPS 6 the alloy only needs to be at the surface. But a lining introduces its own failure modes: differential thermal expansion collapses liners under vacuum, and every branch, tee or instrument connection becomes a place for the fluid to reach the structural wall.

A common hybrid works well - solid C276 for manifolds, pumps, valves and all critical branch points, with lined or clad pipe in the long straight runs. If you take this route, specify the transition details explicitly, because most lining failures happen at the joint rather than in the run.

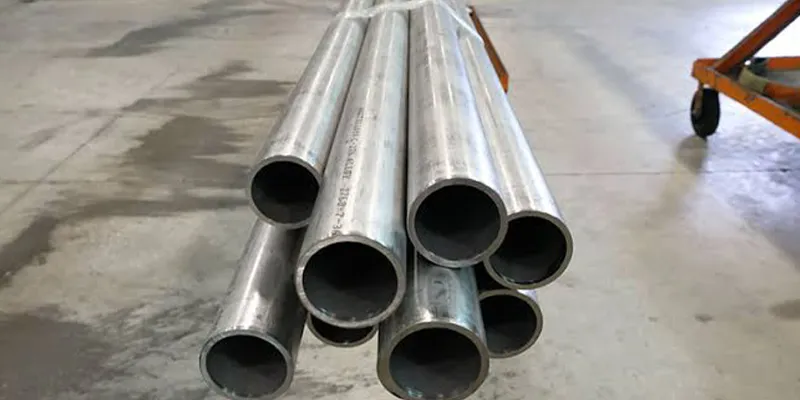

How Do Temperature Limits Constrain C276 Pipe Selection?

C276 pipe can run from cryogenic temperatures to a Code ceiling near 677 °C (1250 °F), but strength falls steadily with heat, so most process piping designs sit well below that limit. Above about 400 °C you should expect to derate the allowable stress and rethink the supports.

Temperature behaviour of C276 pipe

The practical design trap is assuming the ambient allowable stress applies at temperature. It does not. At 200 °C the allowable is roughly 75-80% of the ambient value, and by 400 °C it has fallen much further. Always read the value for your design temperature, not for room temperature, then check the full C276 temperature limits breakdown before finalising schedules.

There is one more temperature-related consideration specific to this alloy: C276 precipitates secondary phases if it dwells in the 550-1090 °C band, which can reduce toughness and corrosion resistance. A proper solution anneal restores it, so any pipe that has been hot formed should be re-annealed and re-certified.

What Corrosion Allowance and Wall Tolerance Should You Specify?

Specify minimum wall rather than nominal wall, and state the corrosion allowance as a number in the line list. Standard pipe to ASTM B622 may arrive 12.5% thinner than the nominal schedule, which is enough to erase several years of corrosion allowance.

Wall thickness ordering options

Here is why the distinction pays for itself. An NPS 4 Schedule 40S pipe nominally has a 6.02 mm wall, but the thinnest legal delivery is 5.27 mm. If your design carries a 1.5 mm corrosion allowance over a 20-year life, that missing 0.75 mm is half the allowance - it can shorten the inspection interval from roughly 20 years to about 13. The 8-15% premium for minimum wall is usually recovered the first time a scheduled inspection is deferred.

Typical corrosion allowances for C276 in well-characterised acid service run from 1.0 to 1.5 mm; in erosion-corrosion locations such as downstream of control valves, elbows and pump discharges, 3 mm is not unusual. Where the corrosion rate is genuinely unknown, ask for coupon exposure data or use the iso-corrosion charts for C276 rather than guessing.

Which Filler Metal and Welding Details Matter for C276 Pipe?

Bottom line: Weld C276 pipe with ERNiCrMo-4 filler wire or ENiCrMo-4 electrodes and nothing else for the pressure boundary. No preheat is needed, interpass temperature should stay below roughly 150 °C, and post-weld heat tint must be removed or the weld will be the first place to corrode.

Welding parameters for C276 pipe

The single most neglected step is removing heat tint. The discoloured oxide zone beside a weld is depleted in chromium and molybdenum, and in aggressive acid service it pits long before the weld metal itself fails. Pickling or electropolishing after welding removes that layer and restores the passive film.

Full procedures, joint design and qualification guidance sit in the C276 welding guide. For dissimilar joints - for example C276 branch connections onto carbon steel headers - use ERNiCrMo-4 rather than an austenitic stainless filler, because the molybdenum-rich weld metal is what prevents preferential attack.

Do Matching Fittings, Flanges and Valves Affect the Pipe Specification?

Yes. The pressure boundary is only as good as its weakest component, so every fitting, flange and valve body must be specified to the same corrosion standard. A 316L gasket or a non-nickel valve trim will fail long before C276 pipe does.

Component specifications that must match C276 pipe

Two site resources help close the loop: the complete guide to C276 flanges covers flange faces and pressure classes, and the N10276 flange dimension tables give the dimensions you need for the isometrics. An overview of C276 pipe fittings completes the picture.

Watch the gasket particularly. Bolted joints create crevices, and the combination of a tight crevice with chlorides is where even C276 can suffer localised attack. Choosing a gasket geometry that minimises the crevice gap is often more valuable than upgrading the alloy.

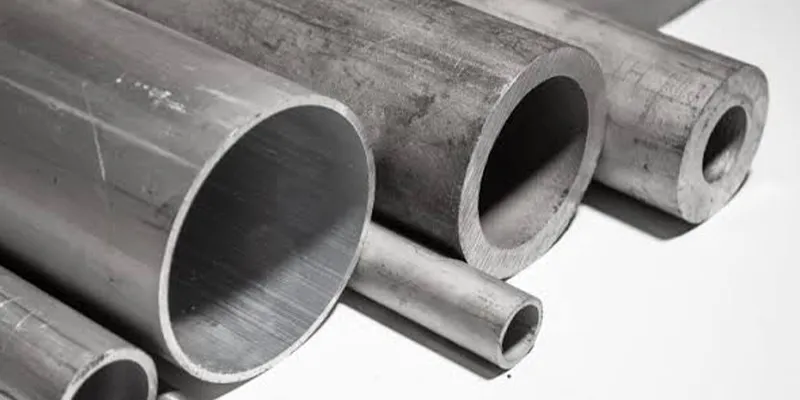

How Does C276 Pipe Compare With Inconel 625, Alloy 20 and 904L Pipe?

C276 leads in hydrochloric acid, wet chlorine and mixed acids; Inconel 625 offers higher strength and excellent seawater behaviour; Alloy 20 is usually cheaper and competitive in clean sulfuric acid; 904L suits dilute sulfuric and phosphoric service without chlorides. Pick by dominant environment first, then by cost.

Comparison of nickel alloy and super-austenitic pipe options

Each pair is covered in depth elsewhere in this series: C276 versus Inconel 625, C276 versus Alloy 20, C276 versus 904L and C276 versus Incoloy 825. For sour service specifically, the sour gas comparison gives the upgrade matrix most operators use.

Cost indices above are indicative and move with nickel and molybdenum prices. Treat them as a relative ranking, not a quotation - see the price discussion below and the dedicated C276 pipe price per kg analysis for current drivers.

What Certification and Testing Should You Require From the Mill?

Require an EN 10204 3.1 certificate as the minimum and 3.2 where a third party must witness testing, supported by full ladle chemistry, mechanical results, hydrostatic testing and positive material identification. Add ASTM G28 intergranular corrosion testing whenever the pipe will be welded or will run in the sensitising band.

Certification and test package for C276 pipe

PMI deserves emphasis. Field surveys of installed nickel piping regularly find a few percent of components with the wrong chemistry - most often a stainless substitution in auxiliary lines that nobody expected to see acid. A five-second XRF reading per heat catches it, and it costs almost nothing compared with an unplanned shutdown.

What Drives C276 Pipe Price and How Do You Read a Quote?

Six variables drive the price you are quoted: construction route, size and wall (which set kilograms per metre), nickel and molybdenum market prices, order quantity and lengths, the testing package, and secondary processing. Compare quotes per metre at identical scope, never per kilogram alone.

Price drivers and how to control them

A per-kilogram comparison is misleading because schedules differ in mass. The discipline that catches real savings is to convert every quote into cost per installed metre, including the welding and examination hours that thicker walls attract - heavier pipe costs more to install, not just more to buy.

Current market detail is maintained in the C276 pipe price per kg analysis. The same principles apply to any nickel alloy pipe: combine the schedule-based weight with the kilograms per metre figure from the ASME B36.19M dimension and weight tables to sanity-check any quotation you receive.

Where Do C276 Pipe Failures Usually Begin?

Most failures start at the weld heat-affected zone, at crevices under gaskets and supports, or at erosion points downstream of valves and elbows - not in the middle of a straight run. Every one of those is a selection detail you can specify against.

Common C276 pipe failure modes and selection-level prevention

Notice what is absent from that list: chloride stress corrosion cracking. C276 is essentially immune, which is precisely why it is chosen over austenitic stainless steel when chlorides and temperature are both present. Its remaining enemies are localised attack in crevices, hot-wall reheat-induced precipitation, and plain economics.

What Should a Complete C276 Pipe Purchase Specification Say?

A complete specification is ten lines long and leaves nothing to interpretation: grade, specification, construction, dimensions, condition, wall tolerance, certification, testing, surface finish and inspection. Write it once, reuse it for every line class.

A model line reads as follows. Adapt the numbers rather than the structure:

• Pipe, UNS N10276 Hastelloy C276, seamless per ASTM B622 / ASME SB-622.

• Size NPS 4, Schedule 40S, per ASME B36.19M dimensions.

• Minimum wall 6.02 mm, no minus tolerance, including 1.5 mm corrosion allowance.

• Delivered solution annealed at 1120-1175 °C with rapid quench.

• Mechanical properties minimum 690 MPa tensile, 283 MPa 0.2% yield, 40% elongation.

• Mill test certificate EN 10204 type 3.1 showing full ladle analysis and heat number traceability.

• Positive material identification on 100% of lengths before despatch.

• Intergranular corrosion testing to ASTM G28 Practice A on one sample per heat.

• Optional: NACE MR0175 / ISO 15156 compliance where H2S is present.

• End preparation: plain ends bevelled to ASME B31.3, capped and individually packed.

Every line exists because something expensive happened when it was missing. The minimum wall clause prevents the 12.5% tolerance surprise, the PMI clause prevents material substitution, and the ASTM G28 clause catches a heat that was annealed badly at the mill.

When you are ready to source, browse available alloy pipe stock or request a quotation against this specification - a complete enquiry normally gets a firm answer in one reply.

• Start from the hub: Ultimate Guide to Hastelloy C276.

• Standards applied to pipe: ASTM Standards for Hastelloy C276.

• Grade naming across regions: Equivalent Grades of Hastelloy C276.

• Property data: chemical composition and mechanical properties.

• Related selection reading: how to choose nickel alloy pipe for chemical plants and selection by acid type.

• Application detail: chemical plants, FGD systems and pulp and paper.

• Fabrication: welding guide and machining tips.

• Cost planning: C276 pipe price per kg and the pipe spool prefabrication case study.

Key Facts About Hastelloy C276 Pipe

Frequently Asked Questions

What is the ASTM specification for Hastelloy C276 seamless pipe?

Seamless C276 pipe is supplied to ASTM B622, with ASME SB-622 as the code counterpart. The specification covers both seamless pipe ordered by NPS and schedule and seamless tube ordered by outside diameter and wall thickness. General requirements such as chemistry, testing and certification come from ASTM B829.

Should I choose seamless B622 or welded B619 C276 pipe?

Choose seamless B622 for high pressure, small bores and the most severe duties, and welded B619 for large diameters and moderate pressure. Welded pipe typically costs 10-25% less per metre, but it carries a lower longitudinal joint efficiency factor under ASME B31.3 unless the weld is fully examined.

What sizes does Hastelloy C276 pipe come in?

Seamless C276 pipe is routinely stocked from NPS 1/8 to 12. Welded pipe extends to 48 in. and larger. Standard schedules are 5S, 10S, 40S and 80S per ASME B36.19M. Heat exchanger and instrument tubing is ordered by outside diameter and wall thickness rather than by NPS.

What is the difference between C276 pipe and C276 tube?

Pipe is specified by nominal pipe size and schedule, following ASME B36.19M dimensions. Tube is specified by actual outside diameter and wall thickness, or by BWG gauge. Both can be seamless or welded from the same UNS N10276 alloy, but they are not dimensionally interchangeable.

What pressure rating does Hastelloy C276 pipe have?

There is no single rating - pressure capability depends on outside diameter, wall thickness, design temperature and the applicable joint efficiency. As a guide derived from ASME B31.3, a 2 in. Schedule 40S seamless pipe carries about 223 bar at ambient temperature, while a 6 in. Schedule 40S pipe of the same material carries about 143 bar.

What allowable stress is used to design C276 pipe?

Designers use the values tabulated in ASME B31.3 Table A-1 for N10276 at the design temperature. At ambient the governing criterion is two thirds of the specified minimum yield strength, giving a derived value near 188 MPa (27.3 ksi). Above roughly 200 degrees Celsius the tabulated allowable falls to about 75-80% of that figure and continues dropping with temperature.

Is Hastelloy C276 pipe suitable for hydrochloric acid?

Yes, hydrochloric acid is C276's strongest application. It handles all concentrations of HCl up to moderate temperatures where stainless steel and most nickel alloys fail rapidly. For boiling or high-temperature HCl, review the iso-corrosion charts for the specific concentration before finalising the wall thickness and temperature limits.

What is the maximum temperature for Hastelloy C276 pipe?

The ASME code ceiling for C276 is about 677 degrees Celsius (1250 degrees Fahrenheit) in Section VIII Division 1, and its oxidation resistance extends to roughly 1040 degrees Celsius in air. In practice most process piping designs stay below 400 degrees Celsius because strength falls steadily with temperature and the tabulated allowable stress drops sharply above that range.

Do I need a corrosion allowance on C276 pipe?

Yes for most services. Typical allowances are 1.0 to 1.5 mm in well-characterised acid duty and up to 3 mm where erosion-corrosion is expected, such as downstream of control valves and at elbows. Always state the allowance explicitly in the specification and order minimum wall so the mill tolerance does not consume part of it.

What is the difference between minimum wall and nominal wall?

Nominal wall pipe may be delivered up to 12.5% thinner than the schedule dimension, which is the standard mill tolerance for ASTM B622. Minimum wall ordering removes that tolerance and guarantees the full nominal thickness, typically for a premium of 8-15%. Minimum wall is worth specifying whenever corrosion allowance governs the remaining life.

Which filler metal should be used to weld C276 pipe?

Use ERNiCrMo-4 filler wire to AWS A5.14 for GTAW and GMAW, or ENiCrMo-4 electrodes to AWS A5.11 for SMAW. This matching filler keeps the weld metal as corrosion resistant as the pipe itself. Do not substitute stainless filler, and do not forget to remove heat tint after welding.

Does C276 pipe need post-weld heat treatment?

No, post-weld heat treatment is not required for corrosion service because the 0.010% maximum carbon content prevents harmful grain boundary carbide precipitation in the heat-affected zone. What is required is clean welding practice, a maximum interpass temperature around 150 degrees Celsius, and removal of the heat-tinted oxide layer.

How much does Hastelloy C276 pipe cost?

Expect roughly 6 to 8 times the cost of 316L pipe per metre, with welded pipe generally 10-25% below seamless at the same size. Final price depends on nickel and molybdenum market prices, diameter and schedule, order quantity, certification requirements and any secondary processing such as cutting or bevelling.

Can C276 pipe be replaced by lined or clad pipe to save cost?

Often yes above NPS 6 in low- to moderate-pressure service, where lined or clad pipe can cut material cost by 40-70%. Avoid linings where there is vacuum, frequent thermal cycling, high pressure or erosive flow. A common hybrid is solid C276 at manifolds, valves and branches with lined pipe in long straight runs.

What certification should I require for C276 pipe?

Require an EN 10204 type 3.1 mill test certificate with full ladle chemistry, heat number traceability and mechanical results. Add 3.2 third-party witnessing for code-stamped work, positive material identification on every length, hydrostatic or nondestructive testing, and ASTM G28 intergranular corrosion testing where the pipe is welded or runs hot.

What is the lead time for Hastelloy C276 pipe?

Stocked sizes in Schedule 10S and 40S often ship within one to two weeks. Non-standard sizes, heavy schedules, large diameters or third-party certification typically push lead times to 8-16 weeks because the mill must schedule a production campaign. Ordering early with a complete specification shortens the cycle considerably.
